Soldering processors and microcircuits

Soldering electronic radio components is one of the skills that any specialist in flashing and repairing electronic modules of washing machines must acquire. Very often, the need for firmware for a particular control module arises after the microcontroller has been replaced and replacing this microcontroller is simply a necessary skill. This skill cannot be conveyed through words, but many subtleties and features can be described. Surface preparation Before you start soldering, you need to prepare the surface for this. As we know, there is oxygen in the air, which is one of the best oxidizing agents, a remarkable reaction of very rapid oxidation is called combustion and, as we know, it is not possible without oxygen, and during combustion it is oxygen that is consumed. And if air is an oxidizing agent, then the soldering site is constantly subject to this process, but for all metals this process occurs differently, for example, in Aluminum, surface oxidation is almost instantaneous, because of this it is very difficult to solder and requires an aggressive medium (flux) in order destroy this oxide film. Metals such as copper or tin oxidize much more slowly, but this process also occurs for them, so before you start soldering, you need to decide how we will prepare the surface. And one of the assistants in this matter is flux Fluxes, solder and braid Flux is a chemical substance necessary to improve the quality of soldering; a lot of fluxes now come with solder, but such a symbiosis is not always justified and does not always give a good result. In addition, fluxes are divided according to activity, roughly speaking, according to the degree of “causticity”, accordingly, the higher the activity, the better rinsing is needed after soldering and vice versa, and some fluxes do not need to be rinsed off after soldering at all, but you need to understand that it’s not just necessary solder the part, and then coat it with varnish or other protective compound, because oxidation, as we remember, occurs on the surface of almost all metals. The minimum kit for a master should consist of flux, preferably tested and of high quality, solder and copper braid. It is advisable to select a pricing policy in the middle segment, do not try to buy the cheapest product, since the time of cheap Chinese goods of acceptable quality has passed and everything that is sold on Chinese sites is more suitable for radio amateurs who, as a hobby in the kitchen, assemble alarm systems for their dachas. You are experts in repairing household appliances and getting money for your services, so it’s worth buying good chemicals, preferably from American manufacturers, at worst, domestically produced, but you should buy Chinese only as a last resort. Soldering iron and hair dryer The minimum tool for a master is a soldering iron; in principle, you can use it to desolder and solder any processor, but it is best to use a soldering iron with a ceramic heater and temperature control so as not to overheat the microcontroller, and it is best to also have a hair dryer with attachments for more uniform heating of the entire surface , but there is no need to overheat and fry the microcircuit black, always monitor the temperature and air flow.

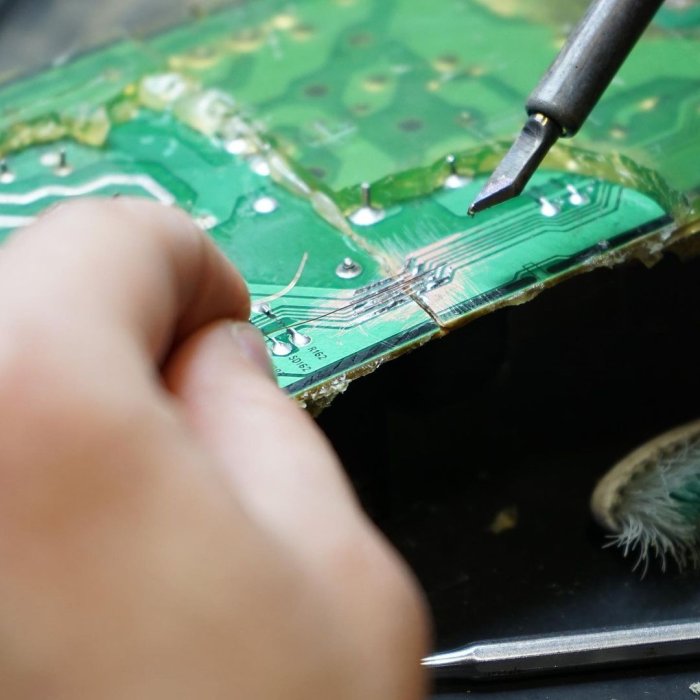

Пайка модуля упрапввления.jpg
Пайка модуля упрапввления.jpg
